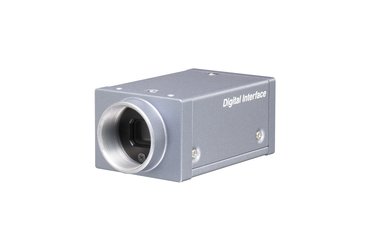

Sony continues to be on the cutting edge of camera technology with the latest addition to its industrial camera line up – The XCG GigE Series. The XCG-SX99E incorporates the GigE Vision interface which is specifically standardized for machine vision applications based on Gigabit Ethernet Technology. The GigE interface enables the camera to transfer a large amount of data over long distances. The use of an Ethernet cable and availability of a wide variety of peripheral devices contribute to significant cost-cutting benefits when designing a complete vision system. Moreover, by incorporating a packet re-send mechanism, the XCG-SX99E can securely transmit data to the host computer. The C-mounted camera measures 44 x 33 c 67.5mm, delivers a resolution depth of up to 12 bits per pixel with a shutter speed of 2 to 1/100,000 and enables 0-18dB of gain control with 0-6dB of digital gain.

  • Sony 2/3 Progressive Scan IT CCD
  • GigE Vision Compliant (Ver 1.0)
  • Up to 27 fps
  • Variety of Trigger Modes
  • Power on LED settings
  • XML File (GenICam Compatible)
  • Two connectors: RJ-45 (locking -20mm pitch)
  • EIAJ -12 pin (power, trigger-in, strobe-out, isolated digital I/O)
  • Compact and Lightweight
  • High Shock and Vibration Resistance
  • Manufacturer: Sony
  • Format: 2/3"
  • Frame Rate: 16
  • Interface: GigE
  • Output: Mono. Progressive
  • Type: Industrial
  • Resolution: SXGA
