Swissflow Liquid Flowmeter
Ideal for volumetric flow measurement, turbine liquid flowmeters are a cost-effective way to accurately measure flow rates. As an industrial supplier of high-quality turbine liquid flow meters, Daitron offers two exceptional turbine flow meter options for your measurement needs. These infrared flow meters utilize patented technology and a well-thought-out design, which are the basis for high-quality Swissflow turbine flow meters.
Sorry, but no flammable liquids for use with these components.
Order using the options below, or contact our offices to learn how Daitron can be your supplier for Swissflow liquid flowmeters.
Sorry, but no flammable liquids for use with these components.
Order using the options below, or contact our offices to learn how Daitron can be your supplier for Swissflow liquid flowmeters.
Fluid Flow Meter Options

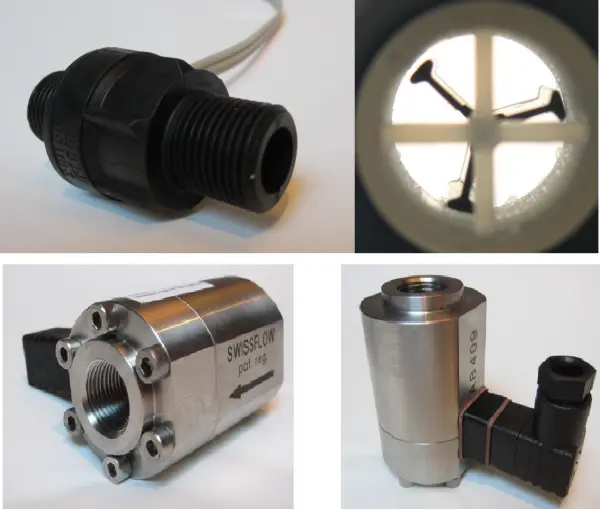

Daitron offers you two high-performance fluid flow meter options: general-purpose plastic flowmeters and high-pressure stainless steel flowmeters. Both options utilize infrared technology.- SF800 General Purpose Meter - The material of construction used for the wetted materials (PVDF and Vectra) are temperature durable and highly chemically resistant plastics. This makes it immune to limescale build-up and adding to the longevity and versatility of the design. Temperature ranges from -4°F to 194°F.
- SF800/6 High-Pressure Meter - This stainless steel model is a high-pressure flowmeter that can withstand harsh environments. Temperature ranges from -4°F to 194°F.
Swissflow Liquid Flowmeter Benefits
Swissflow flowmeters feature advanced adaptative technology. This patented design provides frictionless fluid metering with maximum accuracy without first requiring calibration. Swissflow turbine flow meters are also extremely durable, built for even the most demanding commercial liquid measurement applications. Along with this intelligent design, Swissflow flowmeters feature a limited number of parts, resulting in a product with a huge number of application possibilities and an excellent price-performance ratio.- 12-year warranty
- Exceptionally high durability and long lifespan for superior cost-effectiveness
- Virtually frictionless operation (exceptionally low wear and tear)
- Compact
- Do not need to be calibrated
- Highly proportional, linear, and accurate signal
- High resolution (5500 pulses/L)
- Versatile design for many applications
- Various plumbing options
- Temperature and highly chemically resistant
- Can be installed in any angle or position
- Immune to limescale buildup
- Immune to magnetic fields
How Does a Liquid Flowmeter Work?
A turbine liquid flow meter consists of two main parts: a cylindrical rotor housing (vertical turbine, axial flow in) and a lightweight rotor (0.04 grams). The rotor housing has flow formers at its inlet, which create a controlled and constant swirl in the fluid. This swirl causes the rotor to float in the fluid stream. The rotor's frictionless rotation is directly proportional to the fluid's flow rate.As the rotor spins, it intermittently breaks an infrared signal. This signal is generated by a diode and detected by a phototransistor integrated into the flow meter's electronics. These electronics are securely welded between the rotor housing and an outer housing, protecting them from external infrared interference.
With a floating rotor there is virtually frictionless wear and tear, resulting in an exceptionally long operating life. Turbine flow meters deliver highly proportional, linear, and accurate signal, and can be mounted in any orientation without affecting performance.
For a signal that is highly accurate and immune to external influences, an integrated PCB emits an infrared signal. It is interrupted by the three blades of the rotor, providing a highly accurate translation from this physical occurrence to an extremely high-resolution pulse signal.
Industrial Applications for Liquid Flowmeters
Swissflow flowmeters are used across a wide range of industrial sectors, ensuring precise liquid measurement for numerous applications. Whether monitoring beverage levels or supporting scientific and research systems, Swissflow's liquid turbine flow meters deliver superior accuracy. Common industrial uses for Swissflow liquid flowmeters include:- Liquid inventory management systems
- Bar and restaurant beverage systems
- Hot-water appliances
- Cooling systems
- Laser and waterjet cutting equipment
- Science and research systems
- Chemical dosing equipment
- Lubrication systems
- Hydraulic equipment
- Medical equipment
- Fuel measurement equipment
