Optical Beam FFP Measurement System

Quantity:

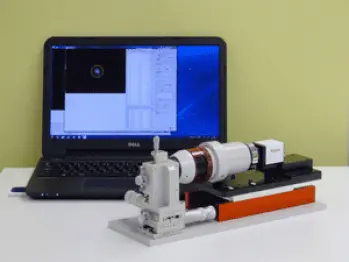

Optical Beam Far Field Pattern Measurement System

  • Optical beam pattern measurement and analysis system in combination with FFP measurement optics & Optical Beam Analysis Module AP013. Best for FFP (far field pattern), N.A. evaluation of various optical devices modules, and components.
  • Measurement of FFP (spread angle) of laser device, optical fiber, etc...
  • Measurement of N.A. for optical fiber, optical waveguide, etc... Depending on wavelength a  high resolution CCD image sensor or InGaAs high sensitivity image sensor
  • standard power up to 300mW, high power 1-10W
  • beam size ~0.05 - 1mm diameter

Please see System components tab below for system details and specifications per component.

1. ISA071  image sensor 400nm - 1100nm wavelength range
    OR
    ISA041H2  image sensor 900nm - 1700nm wavelength range
2. Standard 300mW power M-Scope type F optics
    OR
    High Power 1-10W power M-Scope type HF optics
3. NEUTRAL DENSITY FILTER
4. MANUAL STAGE  (XYZ, XYZ+θxθy, or Z-axis)
5. OPTICAL BEAM ANALYSIS MODULE

OPTICAL LAUNCH OPTICS (on the incident side, not used for measurement)
    M-Scope type G    Underfilled launch optical system
    M-Scope type ML  Mode-selective launch optical system
