Waveguide Loss Measurement System
0
Total Price: $0.000
Quantity:
Add to Quote

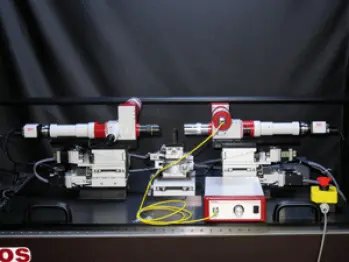

An optical method insertion loss measurement system using direct radiation and detection of measurement light. This is used for the high-resolution measurement of ultrafine structural waveguide modules such as Si-photonics waveguide, near field optical devices, etc.
Please see System Components tab below for system details and specifications per component.

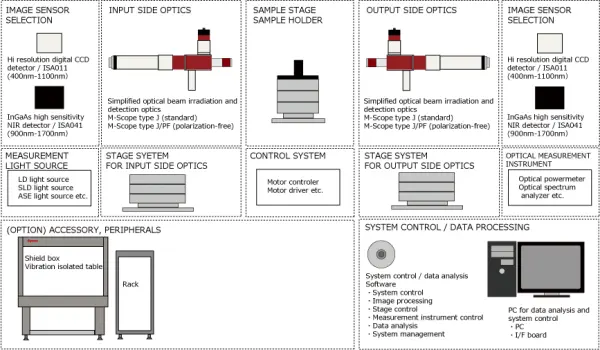

Diagram of Optical Method Microstructural Waveguide Insertion Loss Measurement System
Waveguide Loss Measurement System Video:
Waveguide Loss Specifications
Manufacturer:
1
System components
Catalog
1.
Input sensor
ISA071
high resolution CMOS image sensor 400nm - 1100nm wavelength range
OR
ISA041H2
InGaAs high sensitivity image sensor 900nm - 1700nm wavelength range
2. Input optics
Basic
M-Scope type J
optics with
OBJECTIVE LENS
and optional
Coaxial epi-illumination unit
OR
Advanced
M-Scope type J/PF
optics
3.
Output sensor
ISA071
high resolution CMOS image sensor 400nm - 1100nm wavelength range
OR
ISA041H2
InGaAs high sensitivity image sensor 900nm - 1700nm wavelength range
4. Output optics
Basic
M-Scope type J
optics with
OBJECTIVE LENS
and optional
Coaxial epi-illumination unit
OR
Advanced
M-Scope type J/PF
optics
5.
NEUTRAL DENSITY FILTER
6.
MOTORIZED or
MANUAL STAGE
(XYZ, XYZ+θxθy, or Z-axis)
7. Control system - PC, monitor, control and analysis sopftware, power supply
ACCESSORIES:
Light source ( LD, SLD, ASE)
Optical measurement instruments (Powermeter, spectrum analyzer)
Waveguide Loss Technical Resources
Waveguide Insertion Loss Measurement System Product Overview
