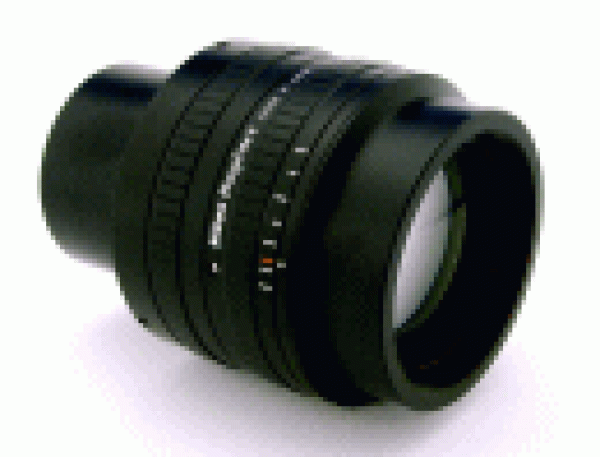

Nikon Rayfact VW0.14x/0.25x/0.35x

  • Nikon Rayfact VW0.14x/0.25x/0.35x

0

Quantity:
Add to Quote
For photograph shooting using a 7μm×8K/5μm×12K/3.5μm×16K camera (line sensor).
Image taking in appearance tests for various industrial products (LED, PC boards, TAB, seats, etc.).
【Features】
・ Image circle of φ64mm is secured for the application of large line sensor cameras.
・ Optical design most suitable for 7μm×8K/5μm×12K/3.5μm×16K line sensor cameras.
・ One of three magnification ratios is selectable (0.1x – 0.4x).
・ Uniformity of high resolution and performance is secured from the center to the corners.
・ Distortion is minimized stringently (0.1% or less at standard magnification).

Model Nikon Rayfact VW0.14x Nikon Rayfact VW0.25x Nikon Rayfact VW0.35x
Type L-OFM014012MN L-OFM025020MN L-OFM035026MN
Focal distance 125.5mm 124.9mm 125.2mm
Standard waveform 546.07nm(e-line)
Waveform range 400～700nm
Standard magnification -0.14x -0.25x -0.35x
Magnification range -0.1x ～ -0.18x -0.18x ～ -0.28x -0.28x ～ -0.4x
Working distance 960.2mm 562.9mm 419.8mm
Mount M55(P=0.75)
Flange back 120.0mm 133.9mm 147.5mm
Dimensions(excluding protruded parts) φ73.5mm×98.7mm φ73.5mm×97.7mm φ73.5mm×97.7mm
Weight Approximately 740g Approximately 740g Approximately 740g
<Attention>
・ Regarding items not specified, the lens is used at standard magnification. If you want use it at other magnification ratios, please inquire to us.
・ Specification values and product appearance may be subject to change without notice.

Rayfact VW0.14x/0.25x/0.35x Specifications

  • Manufacturer: Tochigi Nikon
  • Type: Line sensors
  • Magnification range: -0.1x min to – 0.4x max
  • Image size: φ62mm
  • Focal length: ~125mm
  • Wavelength: 400 to 700nm
