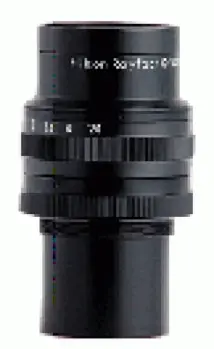

Nikon Rayfact 2x (95mm, F2.8)

Quantity:

High-resolution lens whose distortion and color aberration are strictly compensated for.
Eco-glass version of “Printing-Nikkor 95mmF2.8” that is highly evaluated for fine pattern inspections and measurements. RoHS compliant.
【Features】
・ Apochromat whose color aberration has been strictly compensated for by a unique lens configuration.
・ Thoroughgoing reduction of distortion at standard magnification realizes uniform high performance from the center to corners.
・ Vignet of 0% is realized (at F3.5).
・ Usable with -2.0x or -0.5x by changing the installing position and direction.
Main specifications
Model Nikon Rayfact 2x (95mm, F2.8)
Type OFM20119MN
In use with -2.0x In use with -0.5x
Focal distance 95.0mm
Standard magnification -2.0x -0.5x
Waveform range 400～800nm
Working distance 87.0mm 212.4mm
Mount M45(P=0.75)
Flange back 220.4mm 124.9mm
Dimensions φ57mm×98.2mm
Weight Approximately 360g
Specifications
  • Manufacturer: Tochigi Nikon
  • Type: Line sensors
  • Magnification range: -2.0x or -0.5x
  • Image size: φ64mm or φ32mm
  • Focal length: 95mm
  • Wavelength: 400 to 900nm
