Short Wave Infrared (SWIR) line scan camera

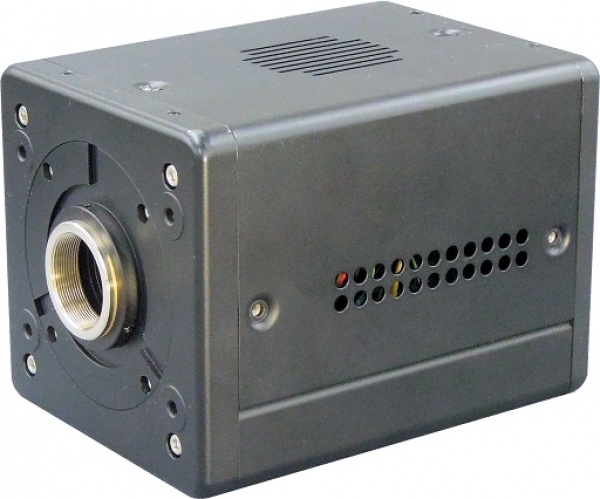

The BV-C3101 is a SWIR camera using a InGaAs sensor having the sensitivity from 1200nm to 2600nm. It has two versions, one is BV-C3101R with 512 pixels and 25µm x 250µm rectangular pixel and the other is BV-C3101S with 512 pixels and 25µm x 25µm square pixel. The BV-C3101R has the sensor sensitivity selection function and BV-C3101S has a FAN cooling system in addition to the built-in Peltier cooling in order to keep the sensor temperature at -15℃ to capture better S/N.

Line frequency         BV-C3101R   1.94KHz(max.)
                                BV-C3101S   13.88KHz(max.)
S/N                         50dB
Synchronization       Internal/External trigger
Interface                    CameraLink
Dimensions               95 x 95 x 95 (W x H x D) mm
Weight                        960g
  • Manufacturer: BlueVision
  • Format: 512 pixels
  • Frame Rate: 4MHz
  • Interface: Camera Link
  • Output: SWIR line scan
  • Type: Industrial
