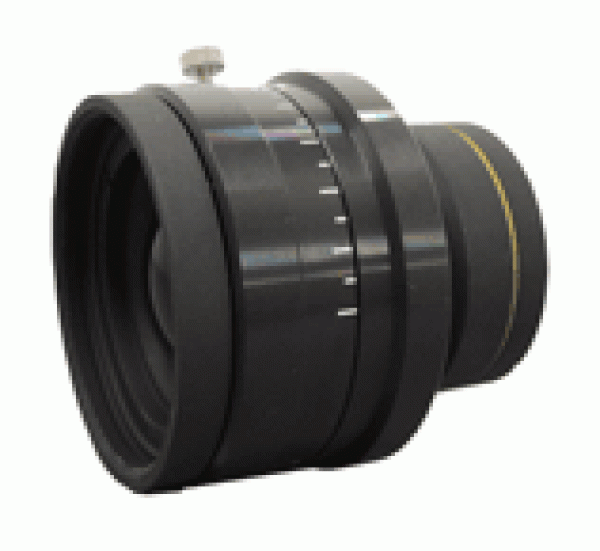

Nikon Rayfact IL95mmF5.6N
0
Total Price: $0.000
Quantity:
Add to Quote
【Features】
・
4 models cover a wide range of magnification (0.25x~2.0x)
・
Image size φ90mm (The largest image size in our standard models)
・
Minimal chromatic aberration in the range of 380~700nm.
・
Aperture ring lockable screw for easy use.
・
RoHS compliant.
Model
Nikon Rayfact IL95mmF5.6N
Type
OFM0300020ML
OFM0600033ML
OFM1000044ML
OFM0600033ML
Magnification range
-0.25x ~ -0.5x
-0.5x ~ -0.75x
-0.75x ~ -1.25x
-1.25x ~ -2.0x
Magnification scale
-0.3x
-0.6x
-1.0x
-1.66x
Focal length
95.1mm
95.6mm
95.6mm
95.6mm
F-Number(∞)
F5.6
NA(Diaphragm open)
0.021
0.033
0.045
0.056
Reference wavelength
587.56nm(d-line)
Wavelength range
380~700nm
Picture angle
40.2°
32.8°
26.4°
20.0°
Image size
φ90.0mm
Object Size*
φ300mm
φ150mm
φ90.0mm
φ54.0mm
Distortion*
-0.11%
+0.08%
0.00%
-0.03%
Relative illumination*
54.2%
69.9%
81.27%
91.4%
Aperture scale
Index(no numeric indication):at 5.6, 8, 11, 16, 22, 32(click stop index half aperture)
Object-to-image distance*
531.0mm
402.9mm
377.4mm
402.9mm
Working distance*
381.4mm
255.7mm
161.9mm
125.6mm
Mount size
d=39mm 1/P=26(Leica)
M43(P=0.75)
Flange-to-image distance*
117.3mm
144.8mm
183.2mm
225.7mm
Attachment size
M43(P=0.75)
Diameter/length(mm)
φ51.0×51.6
φ51.0×51.55
φ51.0×51.4
φ51.0×51.55
Weight
Approximately 155g
Approximately 160g
Approximately 160g
Approximately 160g
*1 Data : Standard magnification -0.3x, -0.6x, -1.0x, -1.66x F5.6, φ90mm
Rayfact IL95mmF5.6N Specifications
Manufacturer:
Tochigi Nikon
Type:
Industrial
Measurement:
0.25x to 2.0x
Image size:
φ90mm
Focal length:
~95mm
Wavelength:
380 to 700nm
Rayfact IL95mmF5.6N Technical Resources
NikonRayfactILSeries_Ver3.2.pdf
