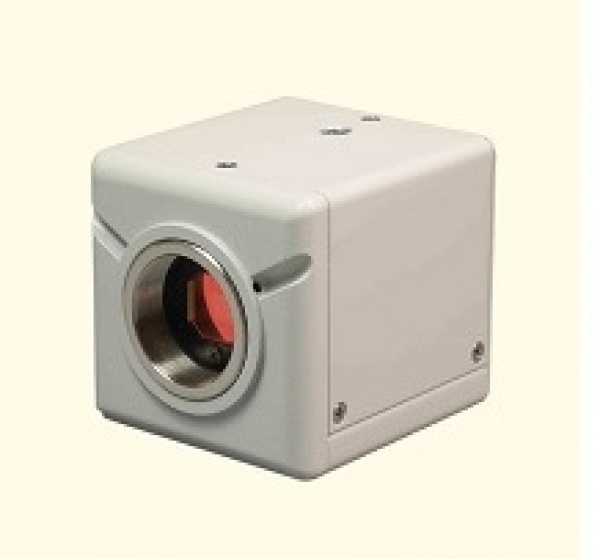

BV-C340MH

Quantity:

HDTV Monochrome camera

The BV-C340MH uses a 1/1/8-inch, 3.2 Mega Global shutter CMOS Monochrome sensor and provides various HDTV formats such as 1080P60,60i, P30 and 720P60. It also provides 50Hz HD formats. The BV-C340MH outputs EIA or CCIR analog signal at the same time when 60Hz or 50Hz HD format is selected.

  Effective image pixel: 1920(H) x 1080(V), Image circle 1/2.35-inch equivalent
  Synchronization: Internal
  S/N: Typical 50dB(0dB)
  Minimum illumination: 0.008Lux(Binning ON)
  AGC: Max. 48dB
  Output format: 1080/60P.60i,30P,50P,50i,25P   720/60P, 50P
  Analog output: EIA/CCIR
  Communication interface: RS485
  Dimensions: 55 x 55x 61 (W x H x D) mm
  Weight: 235g

Specifications
  • Manufacturer: BlueVision
  • Format: 1/1.8-inch
  • Frame Rate: 60fps
  • Interface: RS-485
  • Output: 3G-SDI/HD-SDI
  • Type: Industrial
