BV-C3350

Quantity:

Bi Focal line scan camera (Patent pending) (BTO product)



The BV-C3350 utilizes the same system of BV-C3300 to disperse the incident light. The BV-C3350 installs sensors at the different focal plains to inspect the high and low height of objects at the same time. In the BV-C3350, as we install sensors according to customers’ requirement, it is BTO product.

  Sensor: 4K, 7μm x 2
  Interface: Camera link, Base configuration
  Lens mount: M52 mount
  Dimensions: 95 x 95 x 95 (W x H x D) mm
  Weight: 820g

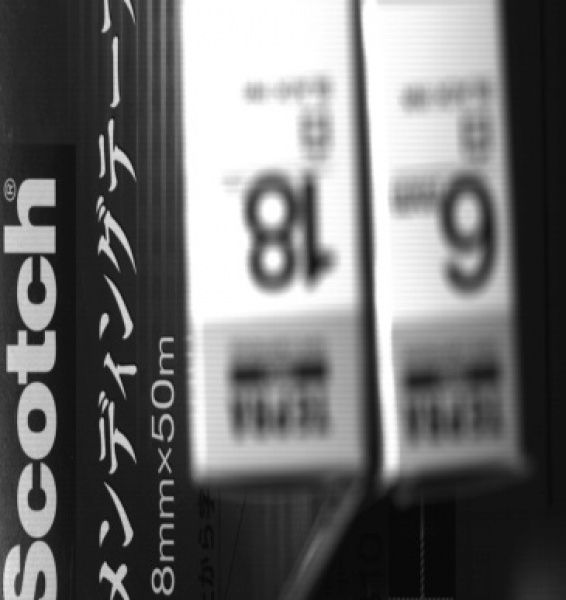

The following images are captured Mending tape and TEPRA tape placed at the different heights at the same time.

Mending tape placed at the back     TEPRA tape placed at the front



Specifications
  • Manufacturer: BlueVision
  • Format: 4096 pixels
  • Frame Rate: 84MHz
  • Interface: Camera Link
  • Output: Bi Focal
  • Type: Industrial
