BV-C3300

Quantity:

P & S wave separation line scan camera

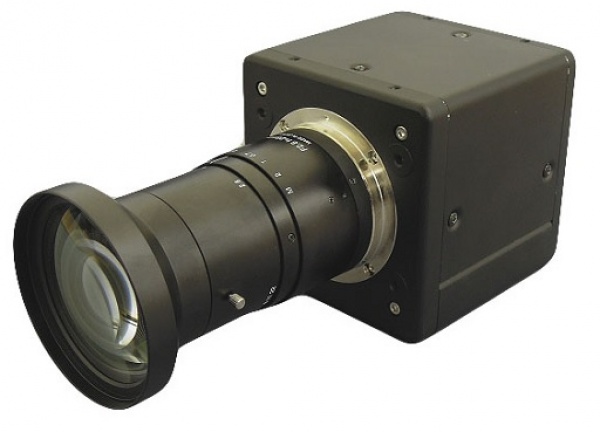

The BV-C3300 has a prism optics and disperses the incident light to S wave component (reflecting light) and P wave component (refracting light). By utilizing this method, it can inspect scratches or blemishes on the front and back surface of transparent objects with thickness.


  Sensor: 4K, 7μm x 2
  Interface: Camera link, Base configuration
  Lens mount: M52 mount
  Dimensions: 95 x 95 x 95 (W x H x D) mm
  Weight: 820g

The following images shows the reflecting image of the surface of the transparent film and the reflecting image of the light through the transparent film.

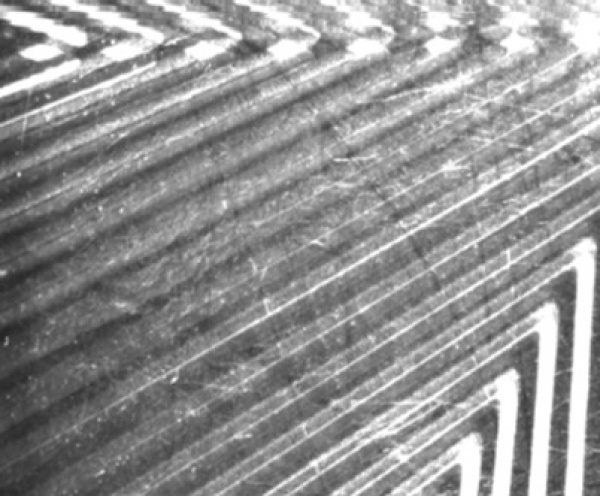

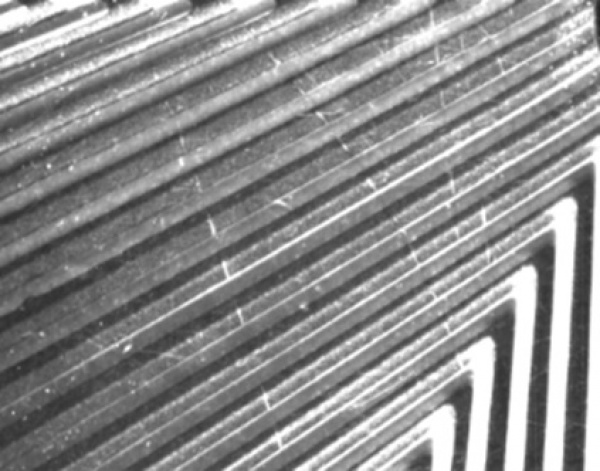

Reflecting image on the surface              Reflecting image of the light through film

(S wave)                                     (P wave)

P & S wave separation lines camera  showing reflecting image on surface (s wave)           P & S wave separation line scan camera image reflecting light through film (P wave)
Specifications
  • Manufacturer: BlueVision
  • Format: 4096 pixels
  • Frame Rate: 80MHz
  • Interface: Camera Link
  • Output: P wave and S wave
  • Type: Industrial
