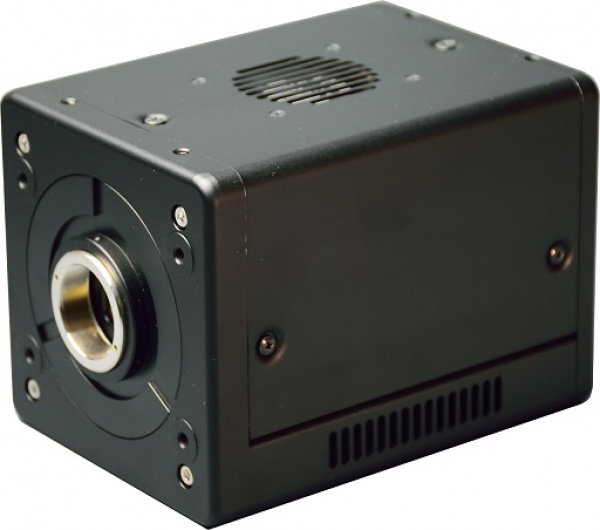

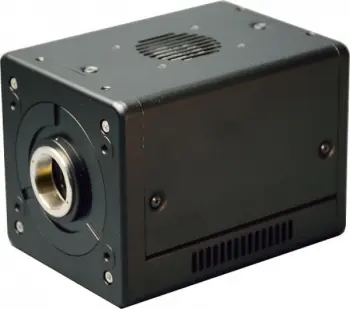

Air cooling SWIR VGA camera

The BV-C2901 is a SWIR camera using a VGA InGaAs sensor having the sensitivity
from 950nm to 1700nm. It uses a Peltier built-in sensor and a cooling FAN for
cooling the sensor. The adoption of the FAN cooling system enables to keep the
sensor temperature at -10 ℃ and it makes possible to capture high S/N images
under 2-second long term exposure as it avoids rise in temperature to cause the
increase of the dark current.

Frame rate                62fps(max.)
S/N                        55dB
Peltier Temp. Set    -10℃(Fixed)
Synchronization      Internal/External trigger
Interface                   CameraLink/Gigabit Ethernet
Dimensions:             95 x 95 x 129 (W x H x D) mm
Weight                       1100g (CL), 1090g (GE)
  • Manufacturer: BlueVision
  • Format: 512 pixels
  • Frame Rate: 62fps
  • Interface: Camera Link or Gigabit Ethernet
  • Output: SWIR VGA
  • Type: Industrial
