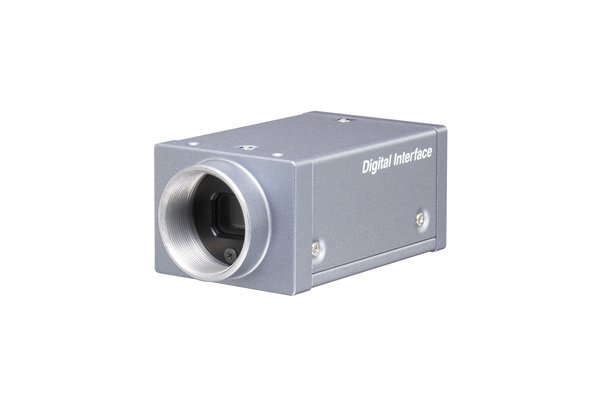

XCG-V60E

Quantity:

Sony continues to be on the cutting edge of camera technology with the latest addition to its industrial camera line up - The XCG GigE Series. The XCG-V60E incorporates the GigE Vision interface which is specifically standardized for machine vision applications based on Gigabit Ethernet Technology. The GigE interface enables the camera to transfer a large amount of data over long distances. The use of an Ethernet cable and availability of a wide variety of peripheral devices contribute to significant cost-cutting benefits when designing a complete vision system. Moreover, by incorporating a packet re-send mechanism, the XCG-V60E can securely transmit data to the host computer. The C-mounted camera measures 44 x 33 c 67.5mm, delivers a resolution depth of up to 12 bits per pixel with a shutter speed of 1/100,000 and enables 0-18dB of gain control with 0-6dB of digital gain.
  • 1/3 type Progressive Scan IT CCD
  • 1000BASE-T (GigE Vision Compatible)
  • 90 fps, VGA Resolution
  • Power on LED Settings
  • XML File (GenICam Compliance)
  • Sony Image Filter Dedicated Driver
  • 7.4 µm square pixels
Specifications
  • Manufacturer: Sony
  • Format: 1/3"
  • Frame Rate: 90
  • Interface: GigE
  • Output: Mono. Progressive
  • Type: Industrial
  • Resolution: VGA
