Single sensor SWIR Camera C Mount Lens

These lenses are designed for a single sensor SWIR camera for both area and line scan cameras and 4 kinds of focal length are available.
Cameras equipped with the image size of less 15mm horizontally can be used with. As for Work Side reference data, please click here.



BV-Lxxxx-SWIR-C  C mount lens series
Model	Weight	WS (Work Size) ( Reference value）
		Magnification at M.O.D	WS (mm)	Camera used (Image size) H:12.8mm
BV-L1028-SWIR-C	630 g	x -0.1	130	BV-C2900
BV-L1035-SWIR-C	630 g	x -0.128	100

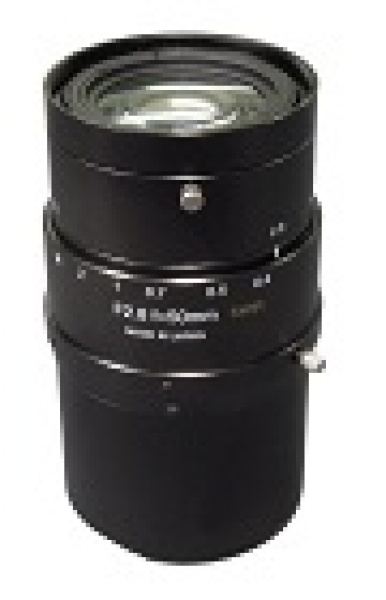

BV-L1050-SWIR-C	410 g	x -0.167	78
BV-L1105-SWIR-C	1110 g	x -0.37	35

NOTE: C mount lenses are converted from M52 mount C mount using conversion adaptor which equips with the flange back compensation optics. They are available as one complete set and the adaptor itself is not available for sale.
