Simultaneous Measurement Systems (NFP&FFP or NFP&Collimated)

Quantity:

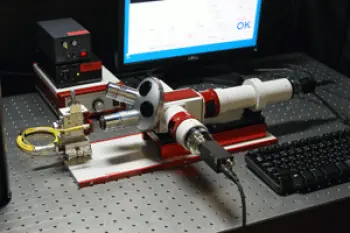

Simultaneous NFP & FFP or NFP & Collimated Measurement System

+Simultaneous measurement of NFP & FFP/collimated beam by a single optical unit. Possible to measure NFP pattern and radiation angle, N.A. / collimated beam condition at once
+NFP/FFP (Collimated beam) evaluation of optical device, optical fiber, optical waveguide module, etc...
+Alignment, assembling adjustment of various collimator modules
+Alignment, assembling adjustment of butterfly module, etc...
+Depending on wavelength a high resolution CCD image sensor or InGaAs high sensitivity image sensor
+Standard power up to 300mW, high power 1-10W blue laser measurement

Please see System components tab below for system details and specifications per component.



1. ISA071  image sensor 400nm - 1100nm wavelength range
    OR
    ISA041H2  image sensor 900nm - 1700nm wavelength range
​2. Measurement type:
    standard power 300mW NFP & FFP
    M-Scope type D optics with OBJECTIVE LENS [note: for FFP only M-Plan Apo 50x can be used (fixed)]
    and optional Coaxial epi-illumination unit
    OR
    high power 1-10W NFP & FFP
    M-Scope type HD/BL optics with OBJECTIVE LENS and optional Coaxial epi-illumination unit
    OR
    standard power 300mW NFP & Collimated
    M-Scope type E optics with OBJECTIVE LENS and optional Coaxial epi-illumination unit
3. NEUTRAL DENSITY FILTER
4. MANUAL STAGE  (XYZ, XYZ+θxθy, or Z-axis)
5. OPTICAL BEAM ANALYSIS MODULE
