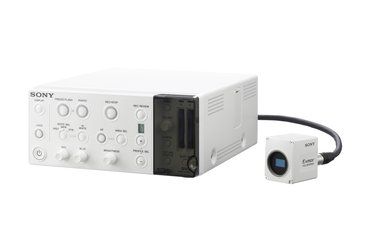

The PMW-10MD Full HD Medical Grade camera system combines outstanding image quality with the convenience of a built-in HD recorder. Its compact size and remote head design allow for simple integration into a wide variety of medical and scientific applications. The camera is equipped with 3 one half-inch (1920 x 1080) Exmor™ CMOS sensors, each delivering over 2 million pixels. Although small in size, the PMW-10MD delivers a superb video image, excellent sensitivity of F10, and a remarkable signal to noise ratio of 54 dB. Combine these specifications with a high horizontal resolution of 1,000 TV lines and a wide dynamic range of 450%, the PMW-10MD stands out as one of the best camera systems available for medical applications.

  • Compact camera head measures approximately 1.4: x 1.77″ x 1.96:
  • Designed for mounting above the OR table or on a surgical microscope using optional lenses and optical adapters
  • DVI-D Output support 1080/59.94P and 1080/50P
  • Built-in recorder features two modes HQ 1920 x 1080 @ 35Mbs or SP 1440 x 1080 @ 25Mb/s
  • Manufacturer: Sony
  • Type: Medical
  • Output: Color Progressive
  • Resolution: 1080p
  • Interface: HD-SDI; DVI
  • Frame Rate: 60
  • Format: 1/2" 3 CMOS
