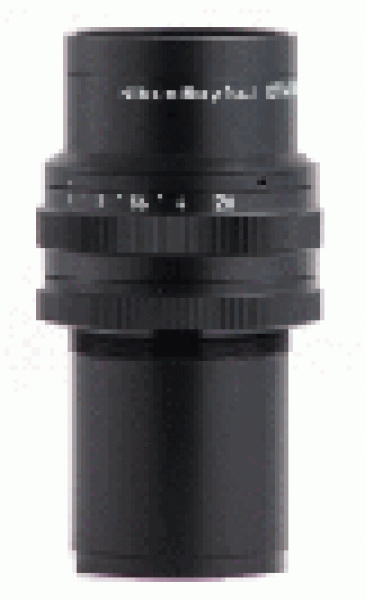

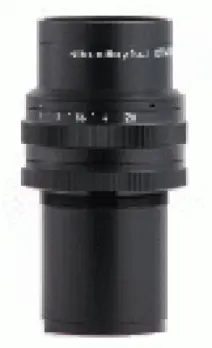

Nikon Rayfact 1x (105mm, F2.8)

Quantity:

High-resolution lens whose distortion and color aberration are strictly compensated for.
Eco-glass version of “Printing-Nikkor 105mm F2.8” that is highly evaluated for fine pattern inspections and measurements. RoHS compliant.
【Features】
・ Apochromat whose color aberration has been strictly compensated for by a unique lens configuration.
・ Thoroughgoing reduction of distortion at standard magnification realizes uniform high performance from the center to corners.
・ Vignet of 0% is realized (at F4).
Main specifications
Model Nikon Rayfact 1x (105mm, F2.8)
Type OFM10090MN
Focal distance 104.5mm
Standard magnification -1.0x
Waveform range 400～800nm
Working distance 140.1mm
Mount M45(P=0.75)
Flange back 189.8 mm
Dimensions φ57mm×107.3mm
Weight Approximately 400g
Specifications
  • Manufacturer: Tochigi Nikon
  • Type: Line sensors
  • Magnification range: -1.0x
  • Image size: φ60mm
  • Focal length: 104.5mm
  • Wavelength: 400 to 900nm
