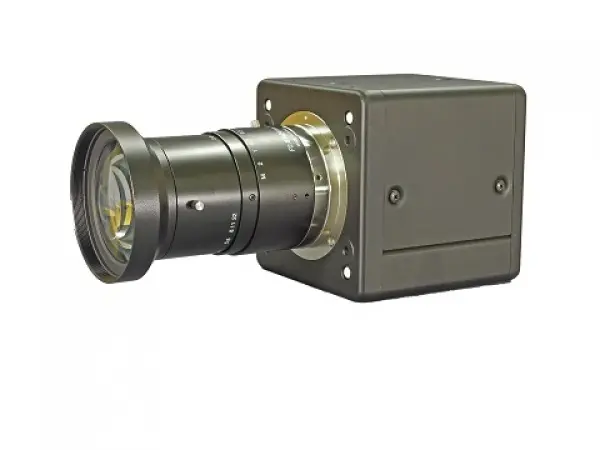

BV-C3200 BlueVision Wavelength Line Scan Camera

  • BV-C3200
Click image to enlarge
0

Quantity:
2 wavelength line scan camera


The BV-C3200 is a camera to disperse the incident light in SWIR light range, into two different wavelength range. The BV-C3200 uses a prism optics to disperse the light.
It is possible to inspect foreign articles of objects by comparing two images at different wavelength, or it is possible to inspect different materials of objects by setting two wavelength at reacting wavelength of each material.

  Sensor: InGaAs sensor x 2
  Interface: Camera link, Base configuration
  Lens mount: M52 mount
  Dimensions: 95 x 95 x 95 (W x H x D) mm
  Weight: 820g

The following drawings are image examples of two different wavelength ranges.

Image from 900nm to 1290nm      Image from 1290nm to 1700nm
image example of wavelength ranges 900nm to 1290nm            image examples of wavelength ranges from 1290nm to 1700nm

Specifications

  • Manufacturer: BlueVision
  • Format: 512 pixels
  • Frame Rate: 5MHz
  • Interface: Camera Link
  • Output: 2 wavelength line scan
  • Type: Industrial

Technical Resources
