XCL-5005

Quantity:

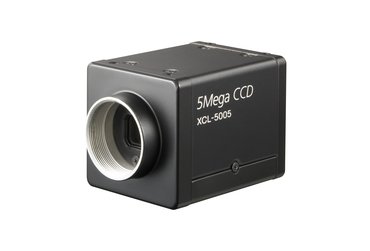

Sony's high resolution XCL-5005 monochrome video camera incorporates a new Sony 2/3-type Progressive Scan CCD sensor with square pixels. This 5-Megapixel CCD camera provides exceptional picture quality( 2,448 x 2,050 pixels) and captures video at 15 frames per second. This camera adopts the AIA PoCL standard (Power over Camera Link) and features auto-selectable power from an EIAJ or PoCL connector. The XCL-5005 also features a multitude of functions such as vertical and horizontal partial scanning, built-in real-time hardware pre-processing, and flexible high-speed outputs. These functions are extremely beneficial to machine vision applications including large part inspection, PCB inspection, semi-mounting and bonding machinery and microscopy.
  • New 2/3 type Progressive Scan CCD image sensor
  • Approximately 5 mega pixel resolution
  • 2447 x 2050 pixels
  • 14 full frames/sec
  • High Sensitivity - 400 lux @ F5.5
  • Partial Scanning & Binning Functions
Specifications
  • Manufacturer: Sony
  • Format: 2/3"
  • Frame Rate: 15
  • Interface: Camera Link
  • Output: Color Interlaced
  • Type: Industrial
  • Resolution: 5 MP
