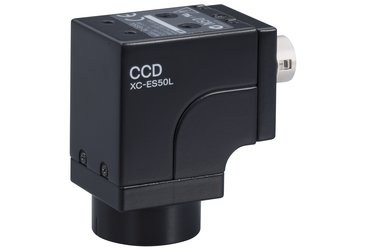

Adding to Sony's extensive line up of machine vision cameras, comes the new XC-ES50L -- a right angle version of the popular XC-ES50 camera. The new XC-ES50L camera incorporates a 1/2 type IT CCD providing 768(H) x 494(V) effective picture elements and feature a c-mount type lens mount. The unique L shape compact body makes the XC-ES50L easy to install in narrow spaces and can be built-in with a turn capability of approximately 180 degrees. The XC-ES50L camera is ideal for demanding machine vision and factory automation applications.
  • L shape design
  • IR cut filter
  • 4 mounting holes (cannot be used with tripod adapters)
  • 29 (W) x 42.5(H) x 43.8 (D) / 110 grams
  • Minimum illumination 3.0 lux
  • Dimensions 29 x 42.5 x 43.8 mm
  • Manufacturer: Sony
  • Format: 1/2"
  • Frame Rate: 30
  • Interface: Analog
  • Output: Mono. Interlaced
  • Type: Industrial
  • Resolution: EIA
