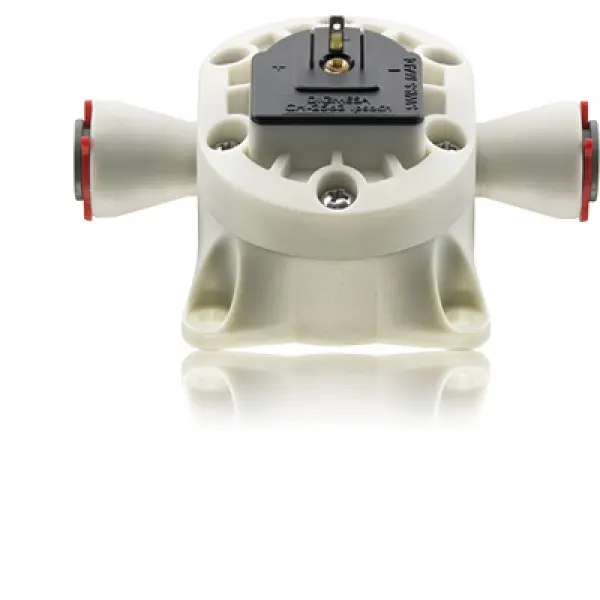

EPI Series Digmesa Flow Sensor
Click image to enlarge
0
Total Price: $0.000
Quantity:
Add to Quote
The EPI flowmeter is specifically suitable for fluid flow rate measurement of highly viscose media such as syrup, oil or detergent concentrates. Thanks to its special design and the epicycloid wheels, the EPI flowmeter is highly precise and allows extremely accurate flow measurement with minimal pressure loss.
For samples please see manufacturers page:
https://shop.digmesa.com/en/
EPI Specifications
Measurement:
liquid flow
Applications:
Syrup, chemicals, liquid soap, oil. Specifically for viscose media (viscosity ~ 5-8000 centistokes)
Flow ranges (L/min):
viscosity dependent, example:- ~0.065-6.00 for 24centistoke syrup
Max pressure (bar):
10
Housing:
PBT (Arnite) or PEEK
Signal:
NPN open collector frequency (pulse) output (0VDC signal)
EPI Technical Resources

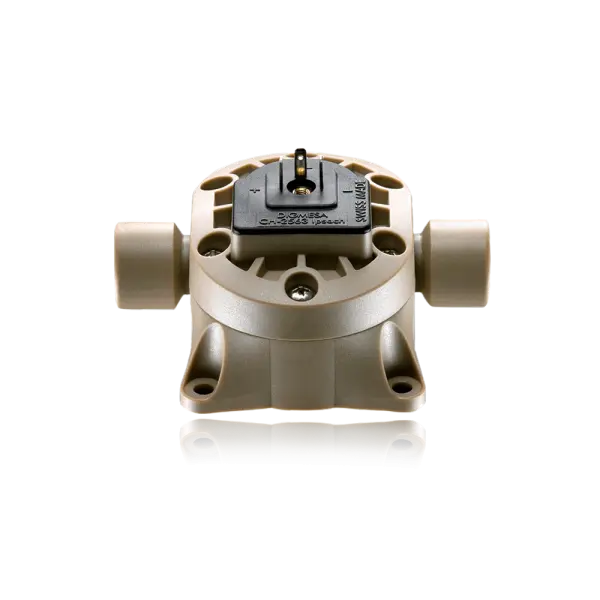

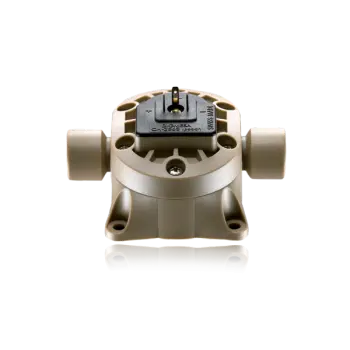

EPI PEEK Chemistry
EPI PEEK STD - 930-0201/V01
EPI PEEK STD - 930-0201-V01
EPI PP
EPI Technical Information

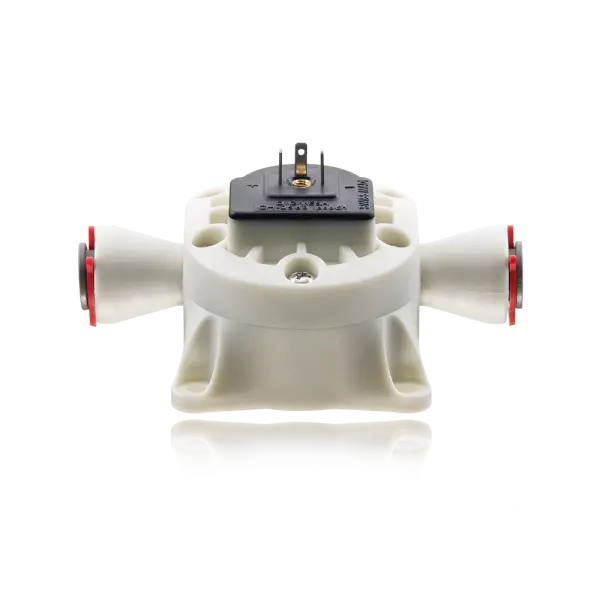

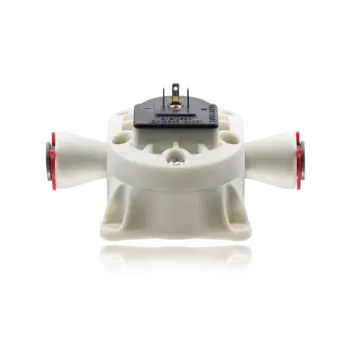

EPI Arnite John Guest 3/8“
