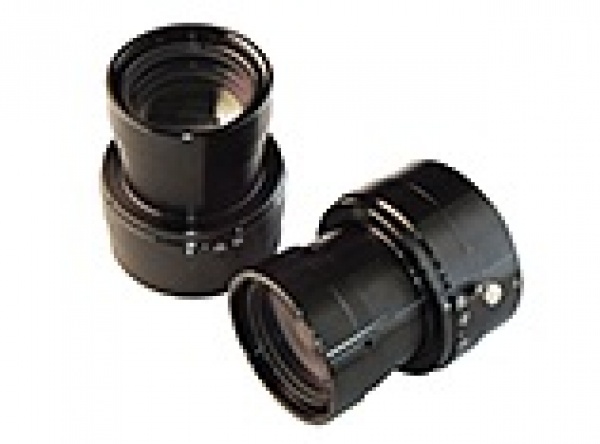

Nikon Rayfact XG0.35x/0.5x/0.7x/1x/1.4x

  • Nikon Rayfact XG0.35x/0.5x/0.7x/1x/1.4x
Click image to enlarge
0

Quantity:
Add to Quote
Large image size - φ86.4mm - For large-sized line sensor
cameras.
【Features】
・ For high resolution, large-sized line sensor cameras.
・ Recommendable line sensor cameras - 5.2μm x 12K / 7μm x 8K
・ Fixed magnification : Choice of 5 types of magnification (0.35x・
0.5x・0.7x・1x・1.4x）
・ High performance guaranteed in all range of magnification.
・ Aperture lockable screw and floating ring lockable screw for
easy use.

Model Nikon Rayfact
XG0.35x		 Nikon Rayfact
XG0.5x		 Nikon Rayfact
XG0.7x		 Nikon Rayfact
XG1x		 Nikon Rayfact
XG1.4x
Type L-OFM035030
MN		 L-OFM050037
MN		 L-OFM070046
MN		 L-OFM100055
MN		 L-OFM140063
MN
Focal length 125.3mm 125.4mm 125.5mm 125.7mm 125.9mm
F-Number(∞) F4.5
NA 0.030 0.037 0.046 0.055 0.063
Magnification scale -0.35x -0.5x -0.7x -1x -1.4x
Reference wavelength 546.07nm(e-line)
Wavelength range 400～700nm
Picture angle 27.4° 24.4° 21.2° 17.8° 14.6°
Image size φ86.4㎜
Object size φ246.9mm φ172.8mm φ123.4mm φ86.4mm φ61.7mm
Distortion *1 -0.2% -0.2% +0.1% +0.0% -0.0%
Relative illumination *1 59.8% 66.5% 73.6% 82.2% 90.0%
Aperture scale *2 4.5, 5.6, 8（with a click stop)
Object-to-image distance 658.4mm 570.0mm 522.2mm 506.2mm 520.4mm
Working distance 452.3mm 344.7mm 273.0mm 219.0mm 182.8mm
Mount size M45(P=0.75)
Flange-to image distance 136.1mm 155.4mm 179.2mm 217.2mm 267.7mm
Attachment size Front:M46×0.75　Back:M40.5×0.5
Diameter/length *3 φ60×70mm φ60×69.9mm φ60×70mm φ60×70mm φ60×69.9mm
Weight Approximately 340g
*1 Highest image height (Y'=43.2mm)　at F4.5
*2 Diaphragm scale indicated with indexes. No numeric indication.
*3 Dimension excludes protrusion of screws or other convex part.

Rayfact XG0.35x/0.5x/0.7x/1x/1.4x Specifications

  • Manufacturer: Tochigi Nikon
  • Type: Line sensors
  • Measurement: -0.35x, -0.5x, -0.7x, -1.0x, or -1.4x
  • Image size: φ86.4mm
  • Focal length: ~125.5mm
  • Wavelength: 400 to 700nm
