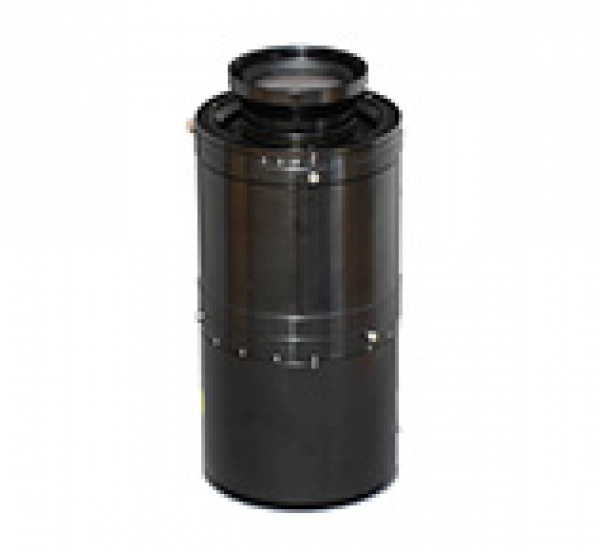

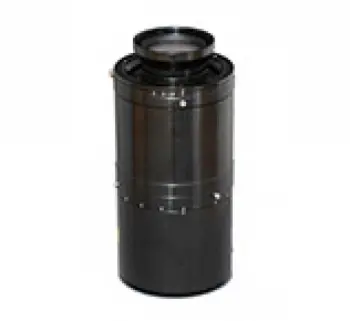

Nikon Rayfact MJ95mmF4

Quantity:

Variable magnification and our largest image cirlce of φ82mm — ideal for appearance-inspection equipment.
【Features】
・ This lens alone covers the magnification range of –0.5x ～
–1.0x (MJ95).
・ Featuring our largest image circle of φ82mm.
・ Minimized performance fluctuations within the variable range.
Optimal performance is ensured for the whole variable-magnification range.
・ Variable aperture and F-number 4.
・ Equipped with an aperture lock screw and a focus lock screw.
・ This micro lens is bundled with a camera mount.

Main specifications
Model Industrial-use micro lens Nikon Rayfact MJ95mmF4
Type See below.
Magnification -0.5x -0.6x -0.7x -0.8x -0.9x -1.0x
Focal distance 93.9mm 94.3mm 94.7mm 95.1mm 95.5mm 95.9mm
Magnification range for use -0.5x ～ −1.0x
F-Number
(by infinity conversion)		 4.0
Standard waveform length 546.07nm（e-line）
Waveform length for use 400～700nm
Picture size
(image circle)		 φ82mm
Object size 164.0mm 136.7mm 117.1mm 102.5mm 91.1mm 82.0mm
Aperture scale 4, 5.6, 8, 11(With a diaphragm look, a click stop)
Working distance 199.3mm 177.9mm 165.8mm 159.4mm 152.0mm 141.8mm
Camera mount See below.
Dimensions See below.
Weight See below.
Model Camera Mount Diameter/length Weight
①OVM10062MN-1-M72D1 M72
(M.B.f=19.56mm)		 φ84mm×193.1mm
～208.0mm		 Approximately
1230g
②OVM10062MN-1-M72D2 M72
(M.B.f=6.56mm)		 φ84mm×206.1mm
～221.0mm		 Approximately
1260g
③OVM10062MN-1-M72N M72
(M.B.f=31.8mm)		 φ84mm×180.9mm
～195.7mm		 Approximately
1200g
④OVM10062MN-1-NMT M84.5×P0.5
(M.B.f=41mm)		 φ84mm×172.2mm
～187.1mm		 Approximately
1200g
⑤OVM10062MN-1-M95E M95
(M.B.f=9.4mm)		 φ100mm×193.3mm
～214.2mm		 Approximately
1270g
Specifications
  • Manufacturer: Tochigi Nikon
  • Type: Industrial
  • Magnification range: –0.5x to –1.0x
  • Image size: φ82mm
  • Focal length: ~95mm
  • Test: 400 to 700nm
