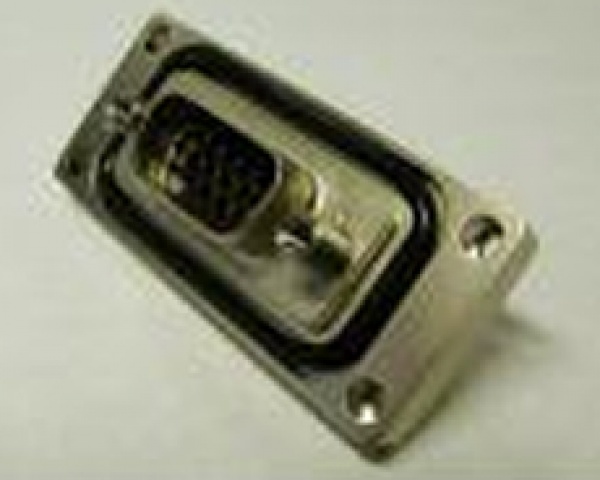

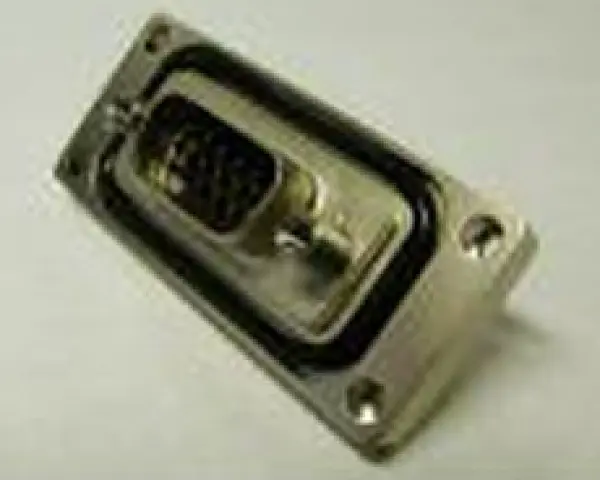

HDB Series - Hermetic Connector


HDB Series Hermetic Connector Features

  • Through bulkhead type high density D-sub Glass-sealed Hermetic Connector
  • Can be used as current transmission terminal for vacuum vessels, pressure vessels, etc.
  • Can mate with MIL-DTL-24308 high-density D-sub plug
  • High-density type with the same shell size as the standard D-sub and a large number of cores
  • Superior airtight (1 x 10-9 Pa▪m3/sec or less) with glass sealed

Structure and Surface treatment:

  • Flange of shell is groove for O-ring
  • Flange of shell is finished surface with nickel plating
