20x Autofocus Full HD color camera

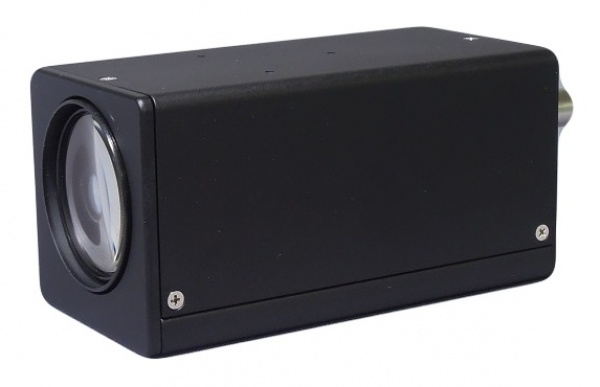

The BV-C7250x20H is a Full HDTV camera built-in 20 times autofocus lens. It equips 1/2.8-inch, 2.5M CMOS sensor and outputs high sensitive and high density full HDTV picture. The output is through HD-SDI, single coaxial cable and the communication control is RS232C. Switches for OSD (On Screen Display) are located on the rear panel and it is possible to set up the camera bfunctions by using those switches. It is 450g, compact size and can be used for various remote viewing applications.
Sensor: 1/2.8-inch, CMOS sensor、2000(H) x 1241(V) 16:9
Minimum illumination: 0.05 Lx
Video output:1080i/1080P
Communication interface: RS-232C
Dimensions: 55 x 55 x 110 (W x H x D) mm
Weight: 450g
  • Manufacturer: BlueVision
  • Format: 1/2.8"
  • Frame Rate: 60fps
  • Interface: Digital&Analog
  • Output: HD-SDI/NTSC
  • Type: Industrial
