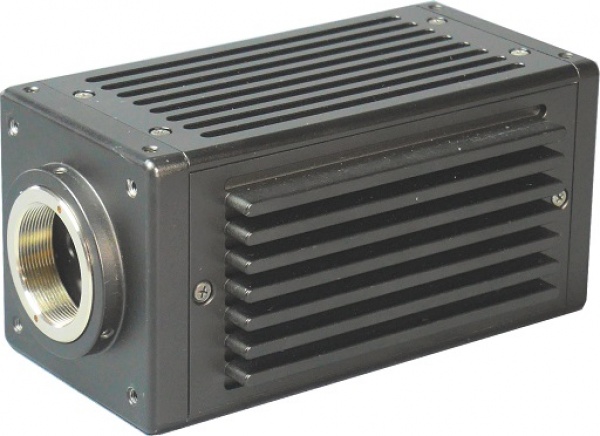

BV-C2906 BlueVision SWIR Line Scan Camera

  • BV-C2906
Click image to enlarge
0

Quantity:

Short Wave Infrared (SWIR) line scan camera

The BV-C2906 is a SWIR line scan camera having a InGaAs sensor with the sensitivity from 900nm to 2550nm. The sensor to be used is 25µm, 512 square pixels and has a built in Peltier.

Line frequency        13.88KHz(Max.)
S/N                        50dB
Synchronization       Internal/External trigger
Interface                    CameraLink/Gigabit Ethernet(1000BASE-T)
Dimensions:              58 x 58 x 115 (W x H x D) mm
Weight                       735g (CL), 725g (GE)


BV-C2906 Specifications

  • Manufacturer: BlueVision
  • Format: 512 pixels
  • Frame Rate: 5MHz
  • Interface: Camera Link
  • Output: SWIR line scan
  • Type: Industrial

BV-C2906 Technical Resources
