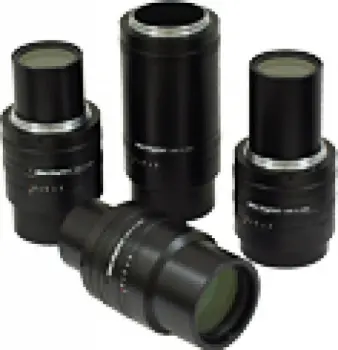

Nikon Rayfact VL0.5x/0.7x/1.0x/1.4x

Quantity:

For photograph shooting using a 7μm×8K/5μm×12K camera (line sensor).
Image taking in appearance tests for various industrial products (LED, PC boards, TAB, seats, etc.)
【Features】
・ Optical design most suitable for 7μm×8K/5μm×12K cameras.
・ Distortion is minimized stringently (0.0% or less at standard magnification).
・ Uniformity of high resolution and performance is secured from the center to the corners.
・ Environmentally friendly design complying with RoHS (using Eco-glass).

Main specifications
Model Nikon Rayfact VL0.5x Nikon Rayfact VL0.7x Nikon Rayfact VL1.0x Nikon Rayfact VL1.4x
Type L-OFM05034MN L-OFM07042MN L-OFM10051MN L-OFM14060MN
Focal distance 122.0mm 122.0mm 122.0mm 122.0mm
Standard waveform 546.07nm(e-line)
Waveform range 400～700nm
Working distance 275.3mm 216.1mm 177.8mm 130.0mm
Mount M55(P=0.75)
Flange back 156.2mm 180.3mm 216.5mm 205.6mm
Dimensions(excluding protruded parts) φ73.5mm×
134.9mm		 φ73.5mm×
137.8mm		 φ73.5mm×
143.3mm		 φ73.5mm×
154mm
Weight Approximately 820g Approximately 780g Approximately 840g Approximately 920g
<Attention>
・ Regarding items not specified, the lens is used at standard magnification. If you want use it at other magnification ratios, please inquire to us.
・ Specification values and product appearance may be subject to change without prior notice.
Specifications
  • Manufacturer: Tochigi Nikon
  • Type: Line sensors
  • Magnification range: -0.5x, -0.7x, -1.0x, or -1.4x
  • Image size: φ62mm
  • Focal length: 122mm
  • Wavelength: 400 to 700nm
