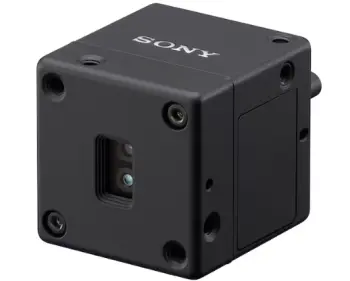

AS-DT1

Name: AS-DT1
SKU: AS-DT1
Availability: InStock

Click image to enlarge

Total Price: $0.000

Quantity:

Add to Quote

FEATURES

1.14 (W) x 1.14 (H) x 1.22 in (D)
50 g (1.76 oz)
Utilizes dToF LiDAR technology1
Single Photon Avalanche Diode (SPAD) sensor2
Range distance of 40 m (131 ft) indoor, 20 m (65.6 ft) outdoor
Lightweight aluminum alloy housing structure
2 USB-C ports
Connector for external power, UART interface and trigger

1 A ranging method that calculates distance by measuring the time it takes for light emitted toward a subject to reflect and return.
2 An electronic device (diode) that achieves high sensitivity by utilizing “avalanche multiplication,” which amplifies electrons like an avalanche from a single incident photon

GENERAL SPECIFICATIONS

HFoV
30° or more*
Maximum measurement range at 15 fps, 50 percent reflectivity, center
Indoor: 131.23 ft*
Outdoor: 65.62 ft*
Measurement accuracy at 10 m
Indoor/Outdoor: ±0.2 in*
Distance resolution
0.98 in
Frame rate
30 fps
15 fps @ Maximum ranging distance mode
Number of ranging points
576（24 x 24）
Laser wavelength
940 nm
Dimensions
1.14 (W) x 1.14 (H) x 1.22 in (D) (excluding protrusions)*
Weight
1.1 oz or less*

Notes

*1 * These figures are provisional and may differ from final specifications.
*2 ** The specifications and appearance are subject to change without notice for improvements.

AS-DT1 Technical Resources

AS-DT1_LiDAR_Depth_Sensor_specs.pdf
